1. Introduction

This document is addressed to programmers interested into knowing more about the internals of Net Blitz II, and specifically how then can extend Net Blitz II by developing their own custom chess engine that will be compatible with it.

If you wish to use an engine from within Net Blitz II, you have two choices:

• Create an engine compatible with the Winboard protocol. This will be covered in section 2.
• Create a Net Blitz engine using our Chess Engine SDK. This will be covered in section 3.

2. Build a Winboard-compatible engine

Winboard (the Windows equivalent of XBoard on the Unix platforms) is chess program user interface similar to Net Blitz II. To enable multiple individuals to develop their own engines and make them compete against each other, the Winboard protocol was born. This protocol was invented by Tim Mann, and the complete specifications can be located on the Tim Mann's Web site. The protocol description itself is found at this page. This is about as far as this tutorial will go regarding creating your own Winboard-compatible engine. Visit the links provided for more information. The nice thing about going this route is that your engine will also be compatible with Winboard user interface and virtually all other Winboard-compatible user interfaces you may find on the Internet.

NOTE: Although Net Blitz II has been successfully tested with a variety of publicly available Winboard-compatible engines (ArasanX, Gnu Chess, among others) we cannot guarantee it is universally compliant with the protocol. We did our best to adhere to the specifications, but we may have overlooked some cases in the process, so you might have to adapt your engine so that Net Blitz II uses it properly.

To setup your engine to be used in Net Blitz II, follow the following steps:

1. Start Net Blitz II application

2. Chose Local Chess Game from the main menu

3. Click on Settings

4. In the Settings dialog, select the Winboard-Compatible Engine from the drop-down list and then click Configure...





5. In the Configure Engines dialog, click Add...

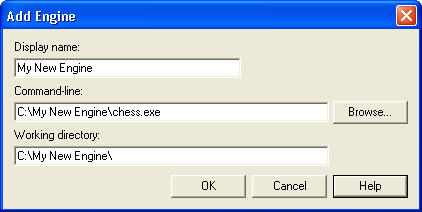

6. Finally, fill in the necessary information so that Net Blitz II can locate your Winboard-compatible engine (display name, path to the executable file and the working directory if needed)




If you followed these steps properly, you should be able to select your new engine from the list (see dialog box in step #5).

3. Build a simple engine using our SDK

The other option you have to develop your own engine to work within Net Blitz II is using our public SDK. Here is a checklist of things you should be aware before going on with this option:

• Engines must be written in C++ (since the SDK is only available in C++)
• Microsoft Visual Studio .NET 2003's C++ compiler should be used. Other compilers may work but were not tested. The reason behind this is because our SDK relies on virtual interfaces that must be implemented by the engine. Since Net Blitz II was compiled with MSVC .NET 2003, your engine must be binary-compatible with the way MSVC .NET 2003 handles its v-tables.

Our SDK is available in the public distribution of Net Blitz II. If you chose the default path when installing, this should be in C:\Program Files\Net Blitz II\ChessEngineSDK. The SDK itself is composed of two header files named ChessEnums.h and ChessEngineSDK.h.

The remainder of this section is a devoted tutorial to show how to create a basic chess engine with the Net Blitz II SDK.

1. Create an empty C++ project in MSVC .NET 2003 (File | New | Project... | Visual C++ Project | Win32 | Win32 Project). For this example we will name our project MyChessEngine.





2. In the Application Settings dialog for your project, select DLL.




3. If everything went well, a file named MyChessEngine.cpp should have been created in C:\MyChessEngine. We will now copy the Net Blitz II SDK into this folder as well. Copy the SDK folder into your project's folder so that the files are accessible from this path: C:\MyChessEngine\ChessEngineSDK\ChessEngineSDK.h and C:\MyChessEngine\ChessEngineSDK\ChessEnums.h.

4. In MyChessEngine.cpp, write the following code :


   // MyChessEngine.cpp : Defines the entry point for the DLL application.
   //
   #include "stdafx.h"

   #include "ChessEngineSDK\ChessEngineSDK.h"
   using namespace NetBlitzEngineSDK;
   BOOL APIENTRY DllMain( HANDLE hModule,
         DWORD ul_reason_for_call,
         LPVOID lpReserved
         )
   {
         return TRUE;
   }


   class MyChessEngine : public ChessEngine
   {
   protected:
   	Color m_color;
   	bool m_bFirstMove;
   	GameCommunicationInterface* m_pGameCommunicationInterface;

   public:
   	MyChessEngine() :
   		m_pGameCommunicationInterface(NULL),
   		m_color(White),
   		m_bFirstMove(true)
   	{
   	}
   	const char* GetEngineName()
   	{
   		static const char* name = "MyChessEngine";
   		return name;
   	}
   	bool InitializeEngine(void)
   	{
   		return true;
   	}

   	bool UninitializeEngine(void)
   	{
   		return true;
   	}

   	void SetCommunicationInterface(GameCommunicationInterface* pInterface)
   	{
   		m_pGameCommunicationInterface = pInterface;
   	}

   	void SetColor(Color col)
   	{
   		m_color = col;
   	}

   	bool HasSettingsDlg()
   	{
   		return false;
   	}
   	void DoSettingsDlg()
   	{
   		// do nothing in this sample
   	}
   	void ResetBoard()
   	{
   		// TODO
   		m_bFirstMove = true;
   	}

   	void ForceMove(int colSrc, int rowSrc, int colDst, int rowDst, Piece promotion)
   	{
   		// TODO
   		m_bFirstMove = false;
   	}

   	bool StartGame(int nbSeconds, int nbSecondsIncrement)
   	{
   		// TODO

   		// for our very simple implementation we only play the 1st move
   		// always move e2e4 if we are white
   		if(m_bFirstMove && m_color == White)
   			m_pGameCommunicationInterface->PlayMove(4, 1, 4, 3, Queen);

   		return true;
   	}

   	bool PlayMove(int colSrc, int rowSrc, int colDst, int rowDst, Piece promotion, int time, int opponentTime)
   	{
   		// TODO
   		// for our very simple implementation, whatever what white plays,
   		// our second move is e7e5

   		if(m_bFirstMove && m_color == Black)
   			m_pGameCommunicationInterface->PlayMove(4, 6, 4, 4, Queen);
   		m_bFirstMove = false;

   		// since we never play a move past 1st move,
   		// our simple engine will lose by the clock...

   		return true;
   	}

   	bool EndGame(void)
   	{
   		return true;
   	}

   	void DeleteThis()
   	{
   		delete this;
   	}
   };

   // this is the function that netblitz will call from your DLL
   // thus it needs the extern "C" __declspec(dllexport) specifiers
   // and its name and signature must exactly match this

   extern "C" __declspec(dllexport) ChessEngine* CreateChessEngine()
   {
   	return new MyChessEngine;
   }

5. Compile MyChessEngine.dll and copy the file into a sub-folder of Engines, for example: C:\Program Files\Net Blitz II\Engines\MyChessEngine\MyChessEngine.dll.

6. Run Net Blitz II, select Local Chess Game, in the Settings dialog your engine should be available in the drop-down list ! Enjoy !
